پلاگ فن ebm، فن سانتریفوژ بکوارد
ویژگیهای محصول
126,000,000 تومان

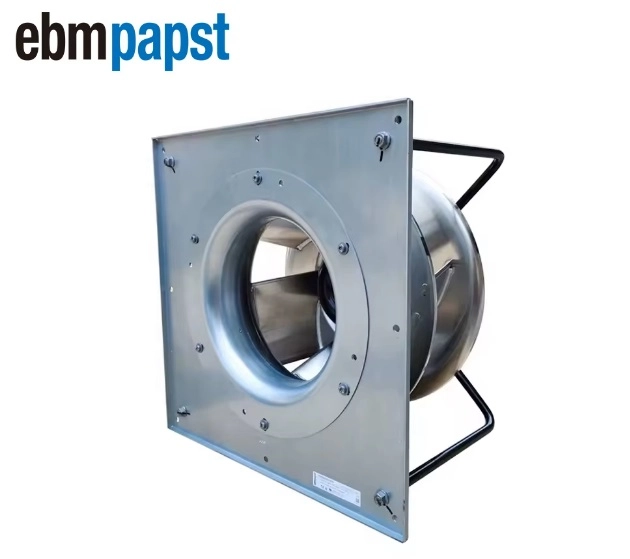

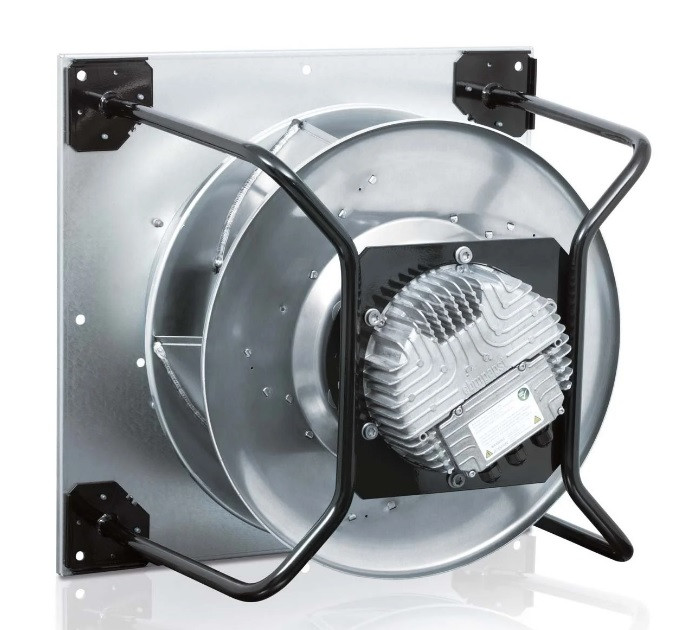

ebm-papst high performance centrifugal fan modules Single inlet; direct drive; 2D centrifugal impeller mounted on an electronically commutated external-rotor motor with integrated electronics; backward curved impeller blades; inlet nozzle made of galvanised sheet steel with pressure relief; complete unit statically and dynamically balanced in two planes according to DIN / ISO 1940 and to balancing quality G 6.3; EC external-rotor motor with maintenance-free ball bearings and permanent lubrication; wide voltage input 200-277V, 50/60 Hz respectively 380-480V, 50/60Hz; unit can be operated on all standard Electricity Board networks at identical air performance; optimised motor technology; soft start; integrated current limitation; connection via brought-out variable cable connector (motor size 084) or via easy-tomount and robust integrated terminal box made of aluminium with spring loaded terminals (motor sizes 112 and 150); extremely compact electronics; with adjustable PID controller (motor sizes 112 and 150); meets all necessary EMC directives and all requirements as to current reverse transfer; no complicated installation with shielded cables required; very low-noise commutation logic; 100% controllability.

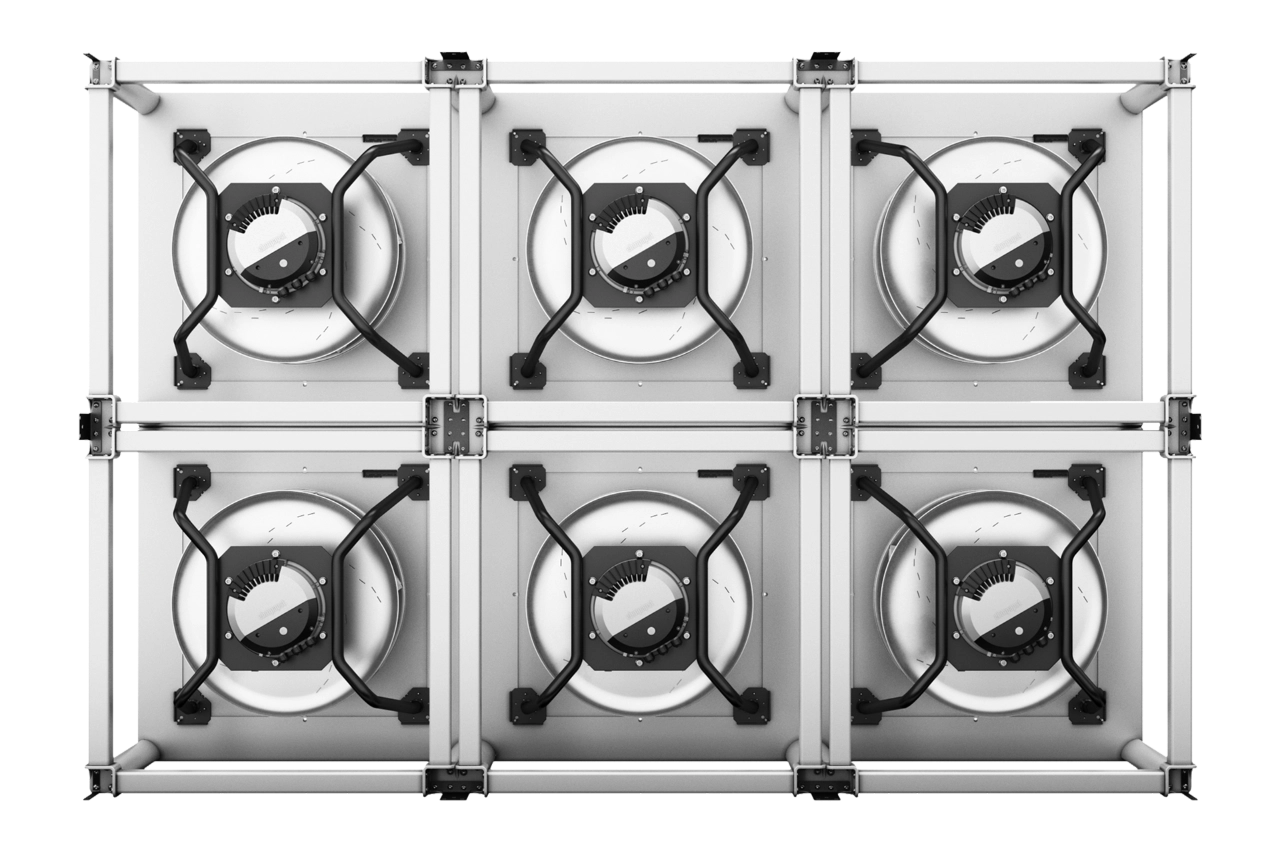

پلاگ فن ها بدون تسمه و بصورت کوپل مستقیم نصب می شوند و به همین علت برای انواع هواسازهایژنیک (بیمارستانی) Hygienic Air Handling Unit و اتاق های تمیز Clean Room ایده آل هستند.
پلاگ فن های ebm بصورت پک کامل عرضه می شوند و در هنگام نصب، کل مجموعه همزمان باز و بسته Plug & Play می شود.
پلاگ فن های موجود در بازار داخلی عمدتا به شکل پره خالی عرضه می شوند و جهت نصب نیاز به اینورتر، موتور و تابلو برق دارند.
